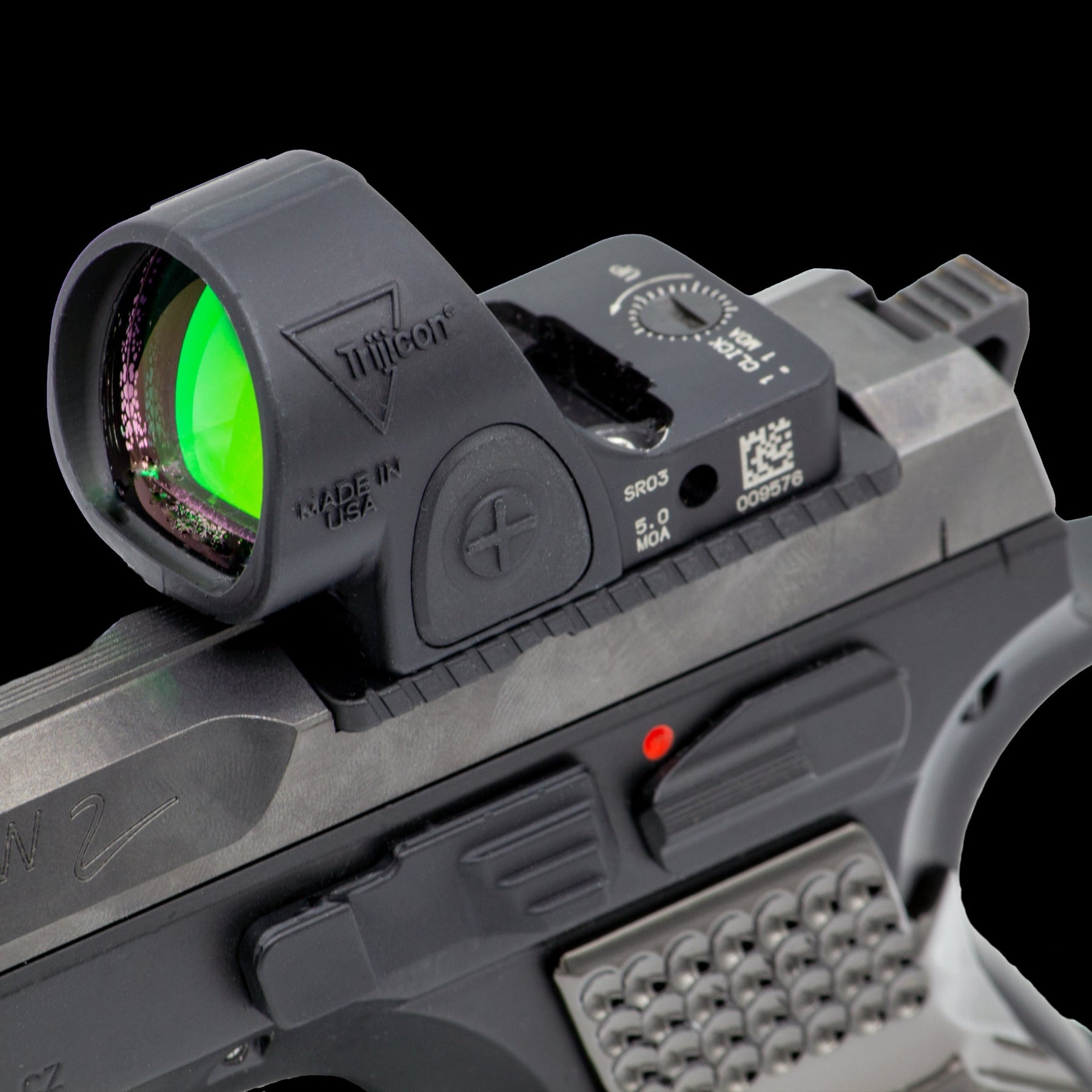

Easily add a variety of red dot sights to the CZ Shadow 2 pistol or clone, such as the C- More RTS 2, Vortex Venom, Trijicon SRO "specialized reflex optic." and other conventional red dot sights that share the same mounting footprint.
The multi-optic red dot mount is installed using the existing factory slide cut on the CZ pistol.
Precision machined from mild steel with a PVD protective finish
Serrations on both sides combined with rounded edges enhance grip and comfort
x8 Locator pins supplied
x2 M3-0.5 X 8 Screws supplied for locking plate to slide
x2 M3-0.5 X 12 Hex screws & washers are included for the installation of the Red Dot to the plate. Please note: (These screws are only needed for those dots that sit over the M3 tapped holes, and may need shortening by cutting/filing for a perfect fitting. Firstly place the Red dot on the plate and thread the screws all the way through. Then flip over to see how much is sticking out. If any thread is sticking out mark the over-length and cut it off as this needs to be ideally flush. Using a Dremel/File is perfect for accomplishing this.)
Weight: 22g
It fits The Following Pistol:
CZ Shadow 2

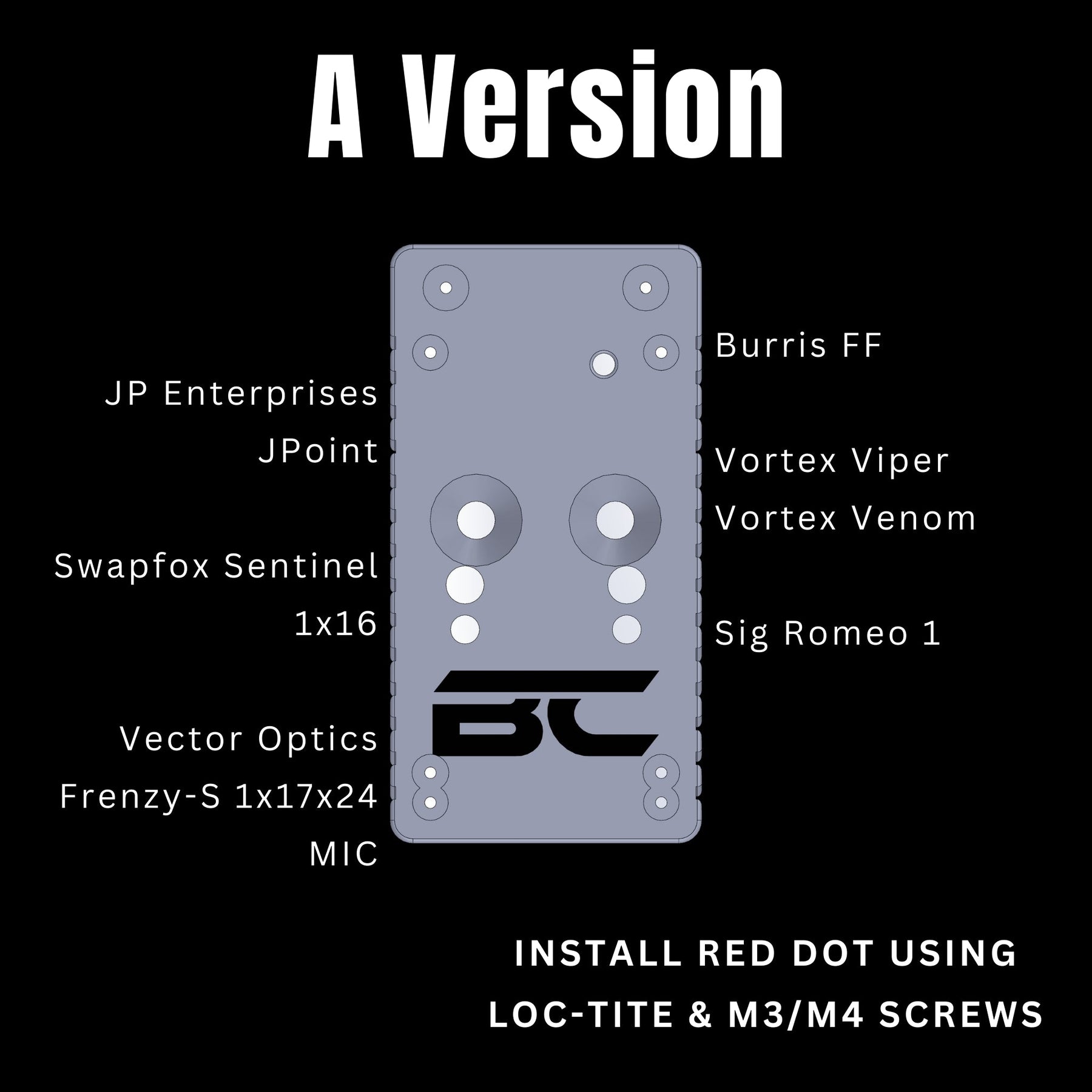

A - Version - Compatible With:
Burris FF
Vortex Viper
Vortex Venom
Sig Romeo 1
JP Enterprises JPoint
Swapfox Sentinel 1x16
Vector Optics Frenzy-S 1x17x24 MIC

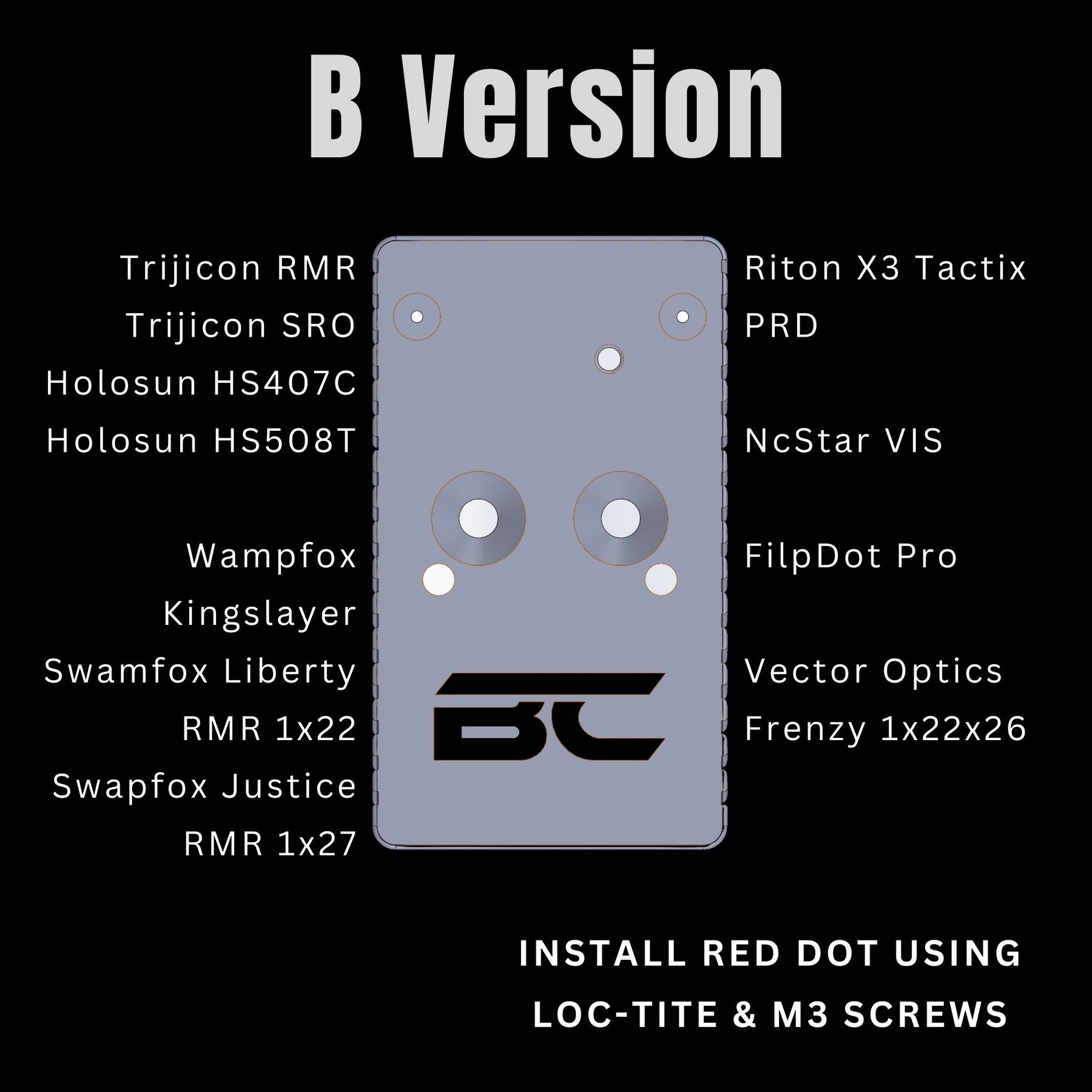

B - Version - Compatible With:
Trijicon RMR
Trijicon SRO
Holosun HS407C
Holosun HS508T
Riton X3 Tactix PRD
NcStar VISM FilpDot Pro
Swampfox Kingslayer
Swamfox Liberty RMR 1x22
Swapfox Justice RMR 1x27
Vector Optics Frenzy 1x22x26

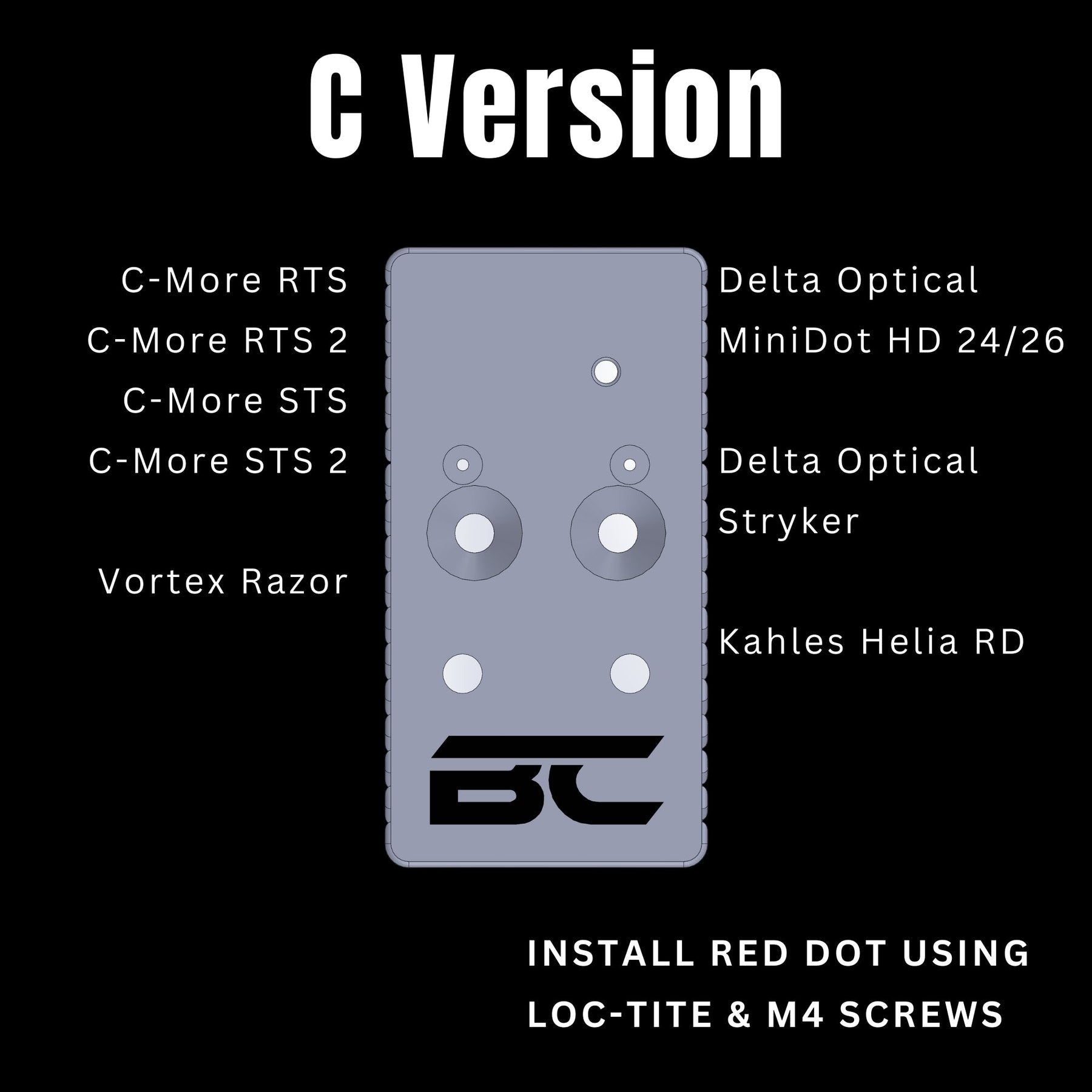

C - Version - Compatible With:
C-More RTS
C-More RTS 2
C-More STS
C-More STS 2
Vortex Razor
Delta Optical MiniDot HD 26
Delta Optical MiniDot HD 24
Delta Optical Stryker
Kahles Helia RD
Boss Components recommends 15-inch lbs of torque and a drip of blue Loctite on all grub & mounting screws.
Use caution when installing screws, as over-tightening can damage the mount.
Please note mounting screws are not included, use the screws supplied with the red dot, and the rear sight pusher tool is recommended for installation. The use of a certified gunsmith is always advised.
